Description

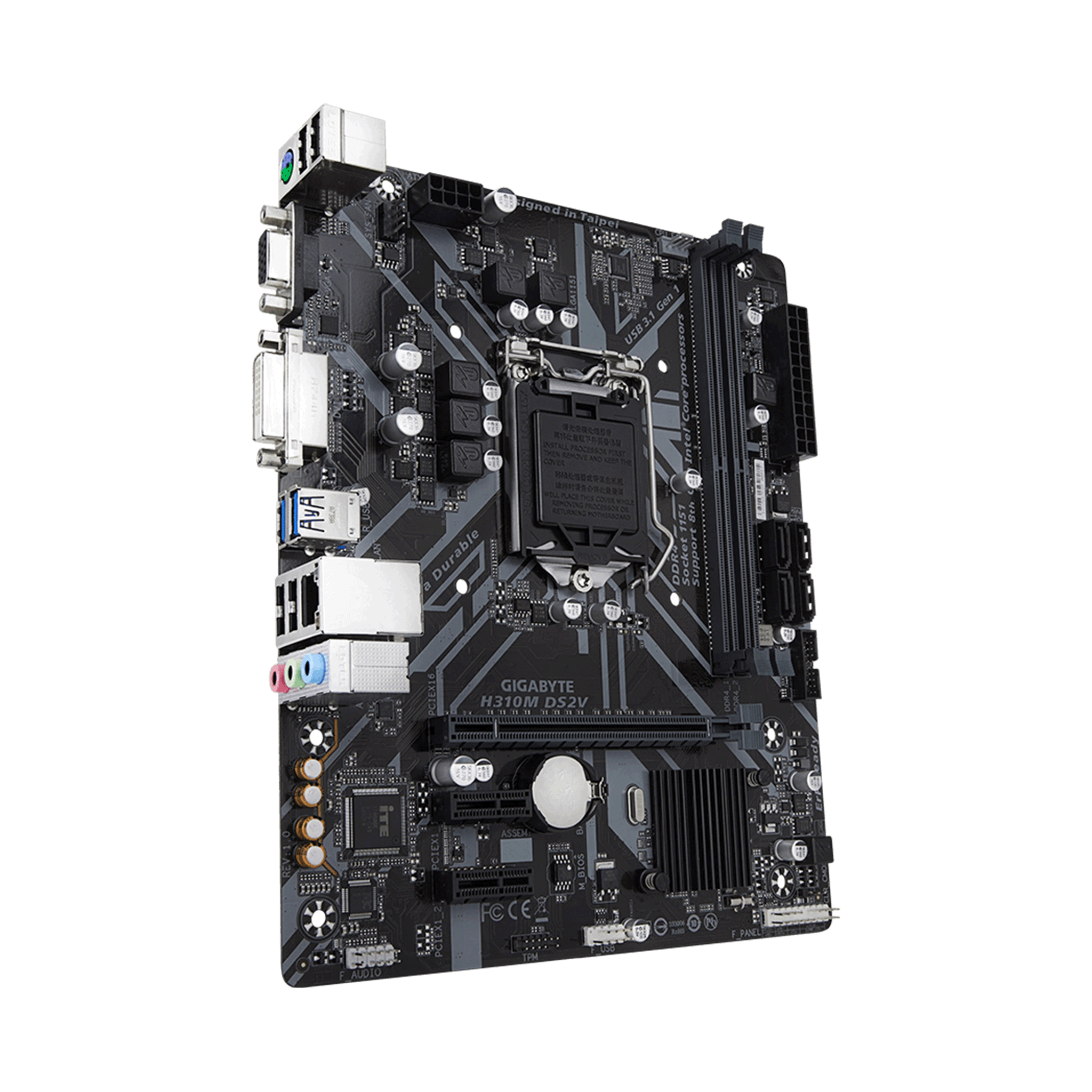

Mainboard SK 1151v2 GIGABYTE H310M-DS2V/S2/D2VX 2.0 Box RENEW (VGA,LAN 1000Mbps, 2 khe RAM DDR4, BH 36T)

CPU

• Supports Intel® 9th and 8th Gen Core™ i9/i7/i5/i3 Processors (LGA1151 socket)

Chipset

• Intel® H310 Express Chipset

Memory

• 2 DDR4 DIMM slots (up to 32GB)
• Supports DDR4 2666/2400/2133 MHz memory
• Supports ECC and non-ECC Un-buffered DIMM memory
• Supports XMP memory (requires 8th Gen i7/i5 CPU)

Graphics

• Integrated Intel® HD Graphics
• D-Sub and DVI-D ports (max resolution 1920×1200@60Hz)
• 1GB shared memory

Audio

• Realtek® ALC887 codec
• High Definition Audio (2/4/5.1/7.1 channel)

LAN

• Realtek® Gigabit Ethernet (10/100/1000 Mbps)

Expansion Slots

• 1 x PCI Express x16 slot (PCIe 3.0)
• 2 x PCI Express x1 slots (PCIe 2.0)

Storage

• 4 x SATA 6Gb/s connectors

USB Ports

• 4 x USB 3.1 Gen 1 ports (2 rear panel, 2 internal)
• 6 x USB 2.0/1.1 ports (4 rear panel, 2 internal)

Internal Connectors

• ATX power connectors (24-pin & 8-pin)
• SATA connectors, fan headers, audio headers, USB headers, TPM header, Clear CMOS jumper

Rear Panel Connectors

• PS/2 keyboard/mouse port
• D-Sub & DVI-D video ports
• USB 3.1 Gen 1 & USB 2.0/1.1 ports
• RJ45 LAN port
• Audio jacks

BIOS

• 128 Mbit AMI UEFI BIOS

Unique Features

• Support for APP Center with various utilities (features may vary by model)
• Q-Flash BIOS update
• Xpress Install

Form Factor

• Micro ATX (22.6cm x 18.5cm)

Operating System

• Supports Windows 10 64-bit
